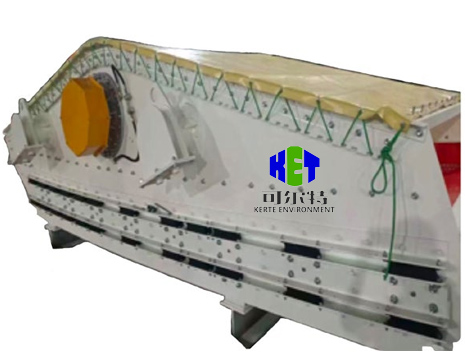

Linear Flip-flow Screen

Kerte Linear Flip-Flow Screen is a high-performance screening solution specially engineered for processing wet, sticky, fine, and high-moisture materials that are difficult to separate using conventional vibrating screens. Utilizing advanced dual-mass resonance technology, it effectively prevents screen clogging while delivering exceptional screening efficiency, making it an ideal choice for coal preparation, mining, metallurgy, power generation, coal chemical processing, and building materials industries.

The screen operates on the flip-flow screening principle, where a single drive generates dual vibrations through resonance. While the eccentric exciter produces the primary circular vibration, the floating screen frame creates a secondary vibration. The elastic polyurethane screen panels continuously expand and contract at up to 800 cycles per minute, generating screening acceleration of up to 50G. This high vibration intensity rapidly loosens and stratifies material, allowing fine particles to pass through the screen while preventing blinding and material buildup.

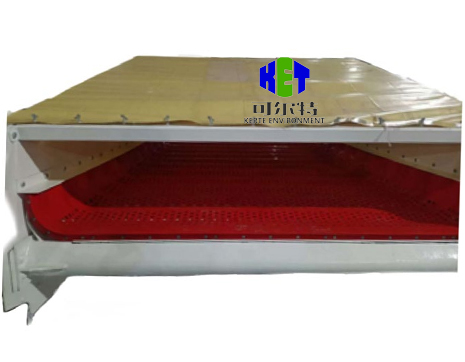

The Kerte Linear Flip-Flow Screen features a robust, heavy-duty structure with a sealed "U"-shaped side plate design that minimizes wear and prevents material leakage. The polyurethane screen panels are secured using wedge-shaped rubber strips instead of bolts, enabling quick replacement and simplified maintenance. The floating frame amplitude can be adjusted to match different material characteristics, ensuring maximum screening performance across various applications.

The machine is supported by durable hollow rubber springs that effectively reduce vibration transmission, lower operating noise, and extend equipment service life. With fewer rotating components than conventional vibrating screens, the Kerte Flip-Flow Screen offers high operational reliability, reduced maintenance requirements, lower energy consumption, and lower total operating costs.

Key Features

Ideal for wet, sticky, and difficult-to-screen materials

Dual-mass resonance technology for superior screening efficiency

Up to 800 screening cycles per minute and 50G vibration intensity

Polyurethane screen panels resist wear, clogging, and material adhesion

Kerte provides reliable Linear Flip-Flow Screens that improve screening efficiency, increase production capacity, and ensure stable performance in the most demanding mineral processing applications worldwide.
